Low-voltage drives are essential for maximizing efficiency and control in small machines, powering everything from factory packaging systems to ventilation fans. This guide explains their mechanics, benefits, and key role in modern automation.
Unpacking Low-Voltage Drives

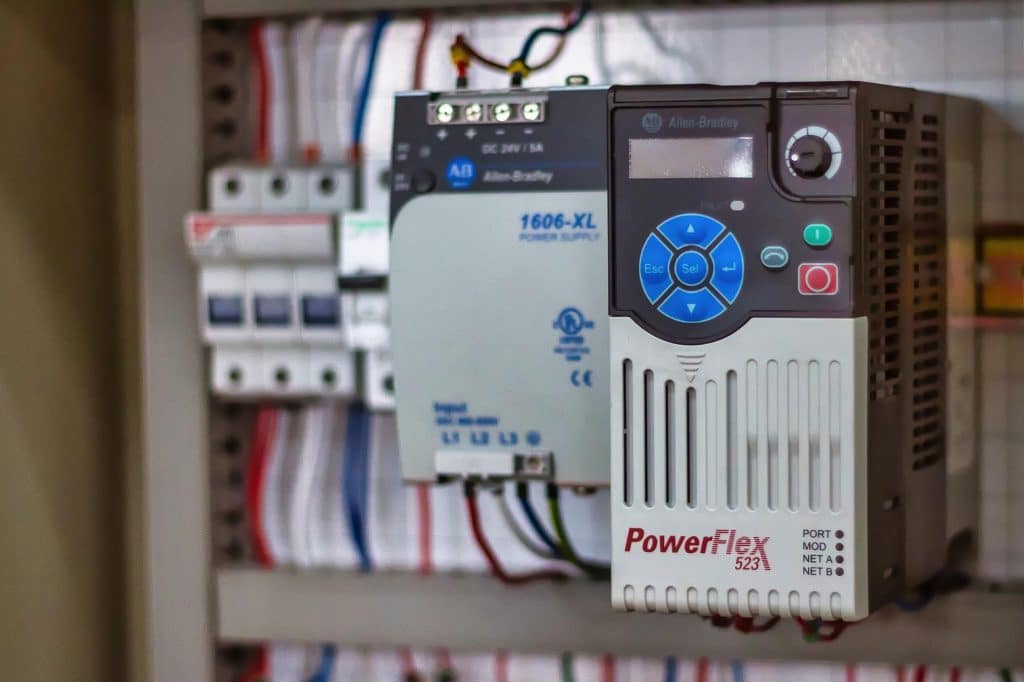

A low-voltage drive is an electronic device designed to control the speed, torque, and direction of electric motors that operate at low voltage, typically up to 690V AC. Think of it as a smart throttle. Much like a car’s accelerator lets you regulate speed smoothly, a low-voltage drive allows fine-tuned control over a machine’s motor, optimizing performance while minimizing energy consumption.
Key Components
- Power Electronics
The drive’s heart. It converts the incoming electrical supply into an adjustable frequency and voltage output for the motor.
- Microprocessor Controller
An embedded “brain” that executes software algorithms for motor control, safety, and communication.
- User Interface
Settings, status, and diagnostics can be monitored or adjusted via touchscreens, keypads, or remotely through connected networks.
Why Use Low-Voltage Drives for Small Machines
Many small machines operate in applications that demand agility, accuracy, and reliability—but often at lower power ranges. Low-voltage drives shine here for several reasons:
- Energy Efficiency
By adjusting motor speed in real-time to precisely match process requirements, drives can reduce energy usage by as much as 30-50 percent compared to running motors at constant full speed.
- Reduced Wear and Tear
Smooth acceleration and deceleration programmed by drives minimize mechanical stress, which extends the life of critical components such as bearings, belts, and gears.
- Process Optimization
Drives enable precise speed control, which boosts product quality and consistency, especially in applications like material handling, textile production, and packaging.
- Compact Design
Smaller machines benefit from compact drive units that can be mounted within tight spaces without sacrificing performance.
- Remote Access and Diagnostics
Modern low-voltage drives offer connectivity through fieldbus systems or IoT platforms, allowing operators to monitor and troubleshoot machines from anywhere.
The Science Behind the Drive
At their core, low-voltage drives use a method called Pulse Width Modulation (PWM). When you flip the switch, here’s what happens:
1. Rectification
Alternating current (AC) from the mains is converted into direct current (DC).
2. Filtering
The DC signal is smoothed out to eliminate ripples, ensuring optimal performance in brushless DC fans.
3. Inversion
The smooth DC is converted back into a modulated AC with user-defined frequency and voltage.
4. Delivery
The tailored AC power runs an electric motor at the desired speed and torque.
This process enables precise control of machine operations, allowing everything from gentle startups to rapid stops, and ensuring machines react to input or process changes instantaneously.
Where Low-Voltage Drives Make a Difference
The real-world uses of these drives are as diverse as the industries that rely on them.
Industrial Automation
Small packaging machines, conveyors, labeling devices, and pick-and-place robots often run on low-voltage drives. These drives ensure high accuracy, minimal waste, and reliable output.
Building Automation
Heating, ventilation, and air conditioning (HVAC) fans, pumps, and small compressors benefit from drives that adjust output to current demand, improving energy efficiency and comfort.
Food and Beverage
From mixing to bottling to sorting, small machines use drives to run at variable speeds, accommodating changing product needs and minimizing downtime during batch production.
Agriculture
Automated irrigation pumps, feed systems, and greenhouse ventilators depend on predictable, programmable motor control, which low-voltage drives provide.
Small Workshops and Labs
Laboratory centrifuges, mixers, and small CNC machines benefit from the precision and repeatability that drives deliver, ensuring reliable results without manual intervention.
Selecting the Right Drive for Your Small Machine
The selection of a low-voltage drive is not a one-size-fits-all process. Key considerations include:
- Motor compatibility
Ensure the drive matches your motor’s voltage and current ratings.
- Load characteristics
Is your machine running constantly, intermittently, or under variable load?
- Connectivity
For advanced process integration, choose drives that communicate via Ethernet, Modbus, or proprietary industrial networks.
- Environmental factors
Drives used in dusty, humid, or high-vibration conditions need robust housings and cooling.
Future Trends and Innovations
Low-voltage drives continue to evolve, with future-ready features already appearing:
- IoT integration
Real-time monitoring and predictive maintenance help avert downtime before it happens.
- AI-driven optimization
Drives can learn process patterns and self-optimize performance.
- Improved safety
Enhanced safety protocols, including SIL (Safety Integrity Level) certifications, protect both devices and humans.
Conclusion
Low-voltage drives may not be the flashiest component on a machine, but their impact is anything but small. By delivering intelligent control, energy savings, and extended equipment life, these drives empower businesses to operate efficiently while adapting nimbly to a changing world.
